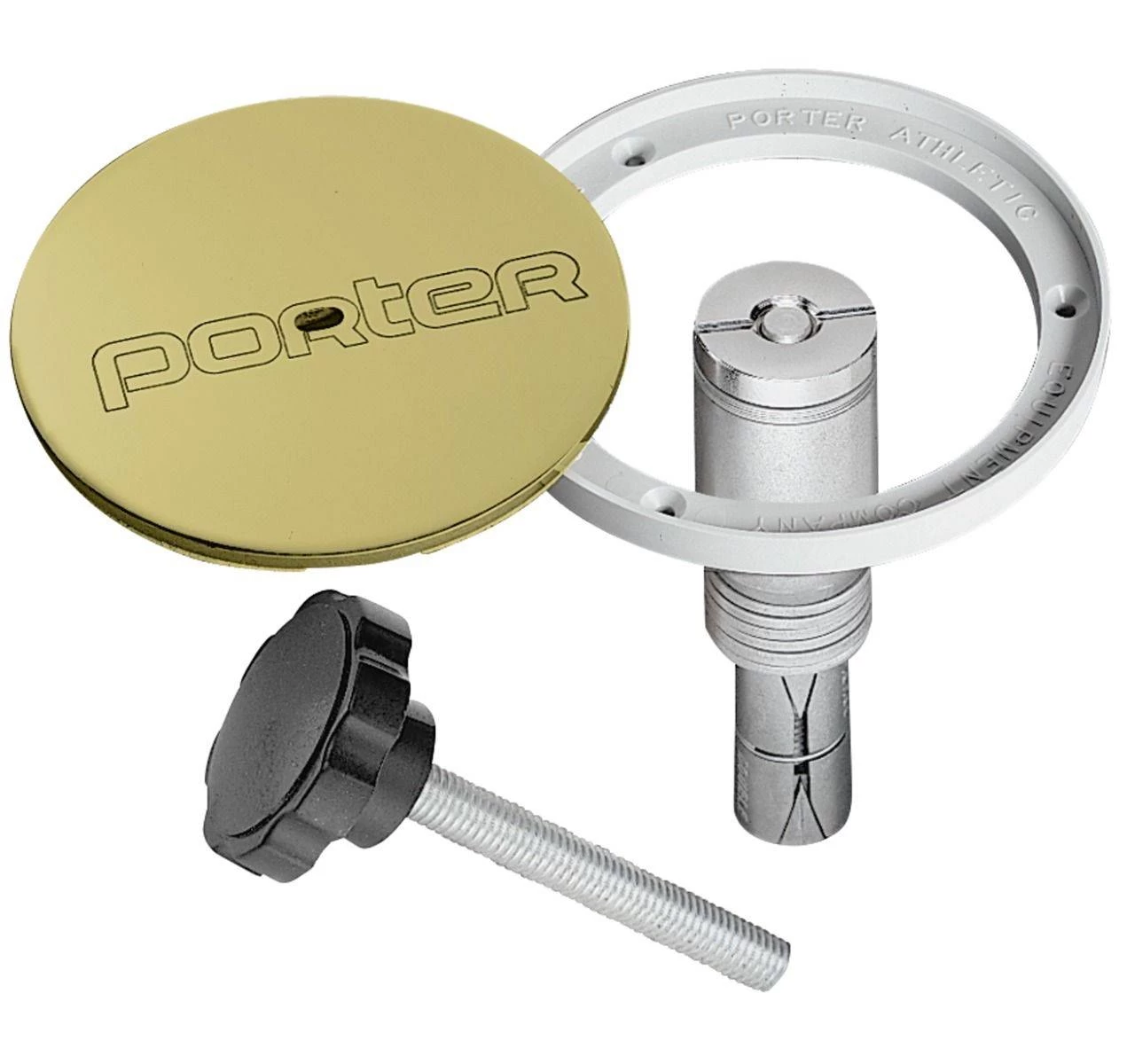

Porter Floating Floor Anchor

The Porter Floating Floor Anchor features a unique two part system that allows movement and expansion of the wood floor, and it provides total floor movement of 2.25 inches. It was designed for +use in floating wood floors and should be installed using a double acting masonry anchor after the finished floor is in place. The 5″ chrome or brass plated cover assembly consists of molded plastic recessed mounting flange, cork gasket, and swivel type retainer pin, and the top of the anchor has a chrome plated finish for a professional level look.

FEATURES:

Designed for use in floating wood floors with a maximum thickness of 3-7/8″

Two part system to allow movement and expansion of wood floor where flooring does not exceed 3 7/8″ total thickness

5″ chrome or brass plated cover assembly consists of molded plastic recessed mounting flange, cork gasket, and swivel type retainer pin

Should be installed using a double acting masonry anchor after the finished floor is in place

Anchor is 1.5″ in diameter and 6″ in length

Top of anchor is polished and chrome plated

Anchor body is zinc plated

Anchor provides total floor movement of 2.25″

Includes a special lock and key for easy cover removal and to prevent theft

Extended shaft handwheel for use on floor mounted equipment sold separately
